Give Your Indoor Cat the Purr-fect Outdoor Experience with DIY Window Catio Plans!
🌿 A SAFE OUTDOOR ESCAPE FOR YOUR CAT
Does your feline friend love watching birds from the window? Give them a safe, breezy outdoor space with our comprehensive Window Catio Plan. This beautiful, compact, uniquely curved Outdoor Cat Cage is designed to attach securely outside a window or sit perfectly on a small balcony. It provides all the sights, sounds, and fresh air of the outdoors without any of the risks!
Whether you're looking for a simple Catio Build Plan for the weekend or a stylish Cat Condo Plans project to upgrade your pet's life, these step-by-step woodworking blueprints make it easy to build a professional-quality Cat Enclosure Diy.
✅ WHY YOU'LL LOVE THIS BUILD
✔ Elegant Curved Design — This unique Cat Window Box shape adds a stylish look while maximizing your cat's viewing angle and airflow.
✔ Compact Window-Mount Size — A true Small Catio Pdf design, perfect for apartments, balconies, or homes without a yard.
✔ Safe & Secure Enclosure — Built with pet-safe wire mesh framing, this Wood Cat Enclosure keeps your cat protected while enjoying the outdoors.
✔ Versatile Placement — Works as a window-mounted Outdoor Cat House or a freestanding Cat Playpen Diy on a patio or balcony.
✔ Beginner-Friendly Build — Clear instructions make this a great Pet Furniture Diy project, even for first-time builders.

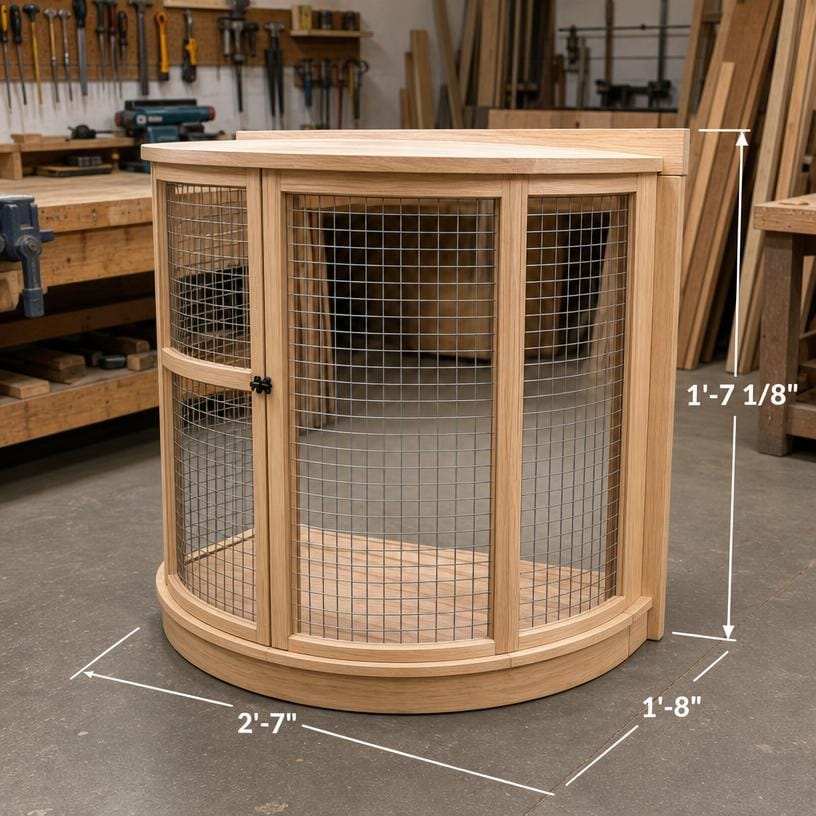

📐 CATIO DIMENSIONS (Compact Window-Box Size)
Overall Width: 2' 7" (31 inches)
Overall Depth: 1' 8" (20 inches)
Overall Height: 1' 7 1/8" (approx. 19.1 inches)
🛠️ WHAT'S INCLUDED IN YOUR DOWNLOAD
✔ Detailed Building Plans — Clear, step-by-step instructions with 3D illustrations for your Catio Plan Pdf project.
✔ Comprehensive Material List — Know exactly what weather-resistant lumber, hardware, and pet-safe wire mesh to buy.
✔ Precise Cut List — Minimize wood waste and save money with our accurate Cat Enclosure Diy blueprint.
✔ Assembly Tips — Professional advice on framing the elegant curved front, securing the safety mesh, and building a solid floor for your cat to lounge on.
💡 WHY CHOOSE OUR PLANS?
Buying a pre-built Outdoor Cat House or custom window box can be surprisingly expensive. Building your own Window Catio Plan is a highly rewarding woodworking project that lets you ensure maximum safety for your pet. Plus, you can paint or stain the wood to perfectly match your home's exterior!
📥 INSTANT DIGITAL DOWNLOAD
Get your PDF plans immediately after purchase. No waiting, no shipping.
⚠️ Please Note: This is a DIGITAL DOWNLOAD only. No physical items, wire mesh, hardware, or lumber will be shipped. You will receive high-quality PDF files instantly upon purchase.
📐 DIY Builder & Woodworking Specifications
1. Lumber Selection & Materials Guide
Western Red Cedar, Redwood, or Pressure-Treated Pine are highly recommended for this outdoor project. Cedar and Redwood contain natural oils that repel insects and resist rot, making them ideal for ground contact or exposed weather. Pressure-Treated Pine is an excellent, cost-effective alternative for structural base frames, though it should be allowed to dry thoroughly before painting or staining.
2. Framing & Structural Assembly
The structural framing for this DIY Curved Window Catio Plans is engineered to withstand wind loads and moisture exposure. Begin by cutting the primary vertical supports and base frames. Using solid 4x4 posts or doubled 2x6 beams ensures a rock-solid foundation. All load-bearing connections should be reinforced with structural timber screws or zinc-plated carriage bolts. Ensure the structure is either anchored to a concrete pad, secured with ground stakes, or set on level deck blocks.
3. Joinery & Fastener Guidelines
This plan is optimized for pocket hole joinery, face-screws, and wood glue. Always pre-drill pilot holes when driving screws near board ends to prevent splitting the wood. Apply a thin, even layer of waterproof PVA wood glue to all mating surfaces before clamping and driving screws. Clamping the joints tightly before fastening prevents the boards from shifting out of alignment as the screw threads engage the receiving piece.
4. Sanding & Professional Finishing
For outdoor preservation, sand the completed project through a progression of 80-grit, 120-grit, and 180-grit sandpapers to open the wood grain. Wipe away dust, then apply a high-quality exterior semi-transparent wood stain to block UV rays, followed by 2-3 coats of marine-grade spar urethane to seal out moisture. For kids play sets, use a child-safe, non-toxic outdoor timber oil.
5. Dual Measurement & Layout Systems
This blueprint features dual measurements, listing both Imperial (inches) and Metric (millimeters) specifications side-by-side. The material lists and wood cut diagrams are optimized for standard lumber yards and hardware retailers. Follow the color-coded cutting layout to minimize wood waste and maximize your material yield.
📐 Measurement Converter
Enter a value above to convert
Quick Lumber Sizes
Builder Q&A
A
The DIY Curved Window Catio Plans, Outdoor Cat Enclosure Build Guide (Digital Download) PDF download contains a comprehensive set of blueprints. You will receive: a precise shopping list for lumber and hardware, an exact cut list to minimize wood waste, detailed 3D exploded assembly diagrams, step-by-step building instructions, and expert tips for finishing. Everything is designed to make your DIY build smooth and successful.
